GBA43R200 High Speed Lathe Parting Tools Cnc Carbide Inserts For
Metal Cutting
Product Name: Tungsten Carbide inserts
Place Of Origin: Sichuan, China (Mainland)
Hardness: HR10-40
Material: 100% Virgin Tunsten Carbide
Coating: PVD,TIAN
Size: Drawing Provided
Appearance: Polishing
High Light: carbide wear parts, tungsten carbide inserts
Customize: Acceptable
Package: Standard Export Packing
1. Excellent chip control & perfect turning surface
2. Less tool breakage, cost down of each componen
3. Stable and extended tool life in continuous and interrupted
cutting operations
Model no:GBA43R200
| model | dimensions |
| r | W-m | B | T | IC | d |
GBA43R/L
(R,L) | 075 | 0.1 | 0.7 | 2.5 | 4.76 | 12.7 | 5.4 |
| 100 | 0.1 | 1.0 | 2.5 |
| 120 | 0.1 | 1.2 | 2.5 |
| 130 | 0.1 | 1.3 | 2.7 |
| 140 | 0.1 | 1.4 | 2.7 |
| 150 | 0.2 | 1.5 | 3.0 |
| 160 | 0.2 | 1.6 | 3.0 |
| 180 | 0.2 | 1.8 | 3.3 |
| 200 | 0.2 | 2.0 | 3.5 |
| 220 | 0.2 | 2.2 | 3.5 |
| 240 | 0.2 | 2.4 | 3.5 |
| 250 | 0.3 | 2.5 | 4.2 |
| 260 | 0.3 | 2.6 | 4.2 |
| 280 | 0.3 | 2.8 | 4.6 |
| 300 | 0.3 | 3.0 | 4.6 |
| 320 | 0.3 | 3.2 | 4.6 |
| 350 | 0.3 | 3.5 | 4.8 |
| 380 | 0.3 | 3.8 | 4.8 |
| 400 | 0.4 | 4.0 | 4.8 |
| 450 | 0.4 | 4.5 | 5.0 |
| 500 | 0.4 | 5.0 | 5.0 | 5.2 | 12.7 | 5.4 |
| model | dimensions | | | | | | |
| r | W-m | B | T | IC | d | | | | | | |
GBA43R/L
(R,L) | 100-R0.5 | 0.5 | 1.0 | 2.5 | 4.76 | 12.7 | 5.4 | | | | | | |
| 120-R0.6 | 0.6 | 1.2 | 3.0 | | | | | | |
| 150-R0.75 | 0.75 | 1.5 | 3.0 | | | | | | |
| 200-R1.0 | 1.0 | 2.0 | 3.5 | | | | | | |
| 250-R1.25 | 1.25 | 2.5 | 4.6 | | | | | | |
| 300-R1.5 | 1.5 | 3.0 | 4.6 | | | | | | |
| 400-R2.0 | 2.0 | 4.0 | 5.0 | | | | | | |
| GBA43/TGF32 Internal grooving tools |
| GBA43/TGF32 Internal grooving tools |
| model | Insert | dimensions | screw | troy | | | | | | |
| Dmin | T | D | H | L | | | | | | |
| S16K-SR/LTGF3219 | TGF32L
/R | 19 | 2.5 | 16 | 15 | 125 | M4*10 | T15 | | | | | | |
| S20M-SR/LTGF3223 | 23 | 2.5 | 20 | 19 | 150 | M4*10 | T15 | | | | | | |
| S25Q-SR/LTGF3227 | 27 | 2.5 | 25 | 23 | 180 | M4*10 | T15 | | | | | | |
| S25R-SR/LGBA4329 | GBA43L
/R | 29 | 4.6 | 25 | 23 | 200 | M5*11/12 | T20 | | | | | | |
| S32S-SR/LGBA4335 | 35 | 4.6 | 32 | 30 | 250 | M5*11/12 | T20 | | | | | | |
| model | insert | dimensions | screw | troy | clamp | claml
screw | wrench | | |
| h/b | L | | |
| TKGFR/L | 1010K16 | TGF32R
/L | 10 | 125 | M4*10 | T15 | without | | |
| 1212K16 | 12 | 125 | | |
| 1616M16 | 16 | 150 | | |
| 2020M16 | 20 | 150 | | |
| 2525M16 | 25 | 150 | | |

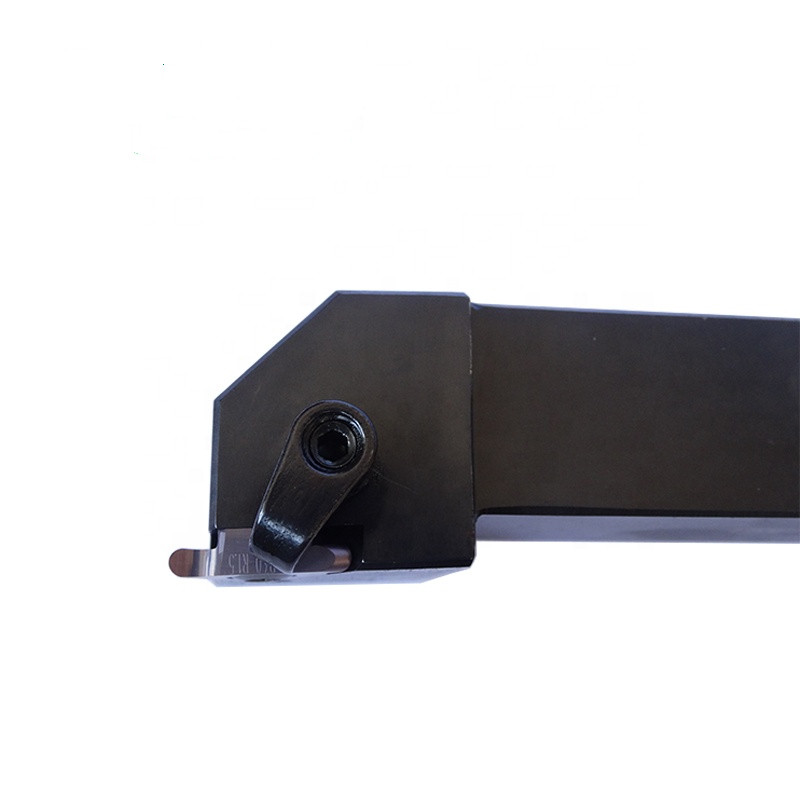

| GBA43R/L | 2020K22 | GBA43R
/L | 20 | 125 | M5*11/12 | T20 | HL1814 | ML0625 | S2.5 | | |
| 2525M22 | 25 | 150 | | |
| 3232P22 | 32 | 170 | | |
FAQ:
Q: Why customers choose us?
A: Competitive price,high quality,fast delivery,patiently pre-sales
consultation and perfect after-sales service. And we are
manufactures ,have our own factory ,we can Guarantee our quality.
Q: What's the MOQ?
A: Usually MOQ is one box,10 pcs/box, some special is 5 pcs/box or
2 pcs/box.
Q: How long is your delivery time?
A: Generally 3-7 work days if the quantity 1-500 pcs,more than 500
pcs,need to negotiate.
Q: How does your factory to control quality?
A: Quality is priority. we will do 100% quality inspection before
shipment.
Q: What is payment method?
A: Normally T/T, Western union,Pay pal ,Credit card.
Q: Do you accept trial order?
A: Yes,u can order with small amount to test.
