Grooving Carbide Insert Parting Tool For CNC Lathe MGGN150-LH
Features:
Tungsten carbide inserts mainly include turning inserts, milling
inserts, grooving inserts,
parting inserts, threading inserts, ect. with CVD or PVD coating.
Cemented carbides commonly use tungsten carbide (WC),and
cobalt(Co).
Mentions of "carbide" or "tungsten carbide" in industrial contexts
usually refer to these cemented composites.
1. Excellent chip control & perfect turning surface
Machining perfect turning surface of the workpiece.Excellent and
reasonable Chipbreaker design,
2. Less tool breakage, cost down of each component
Saving costs and reducing the cost of each component to increase
the profits .
The high wear resistance makes the long tool life of the carbide
inserts,
which means you could saving more budget on purchasing the inserts.
3. High wear resistance with PVD coating.PVD coating with high wear resistance.
4. Long tool life, higher production efficiency.
Long tool life means you need less time changing the inserts while
machining.
A reliable and safe performance every time.
We Guarantee:
1. produced with advanced equipments and process.
2. high quality durable carbide threading,thread milling,grooving inserts
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. free online technical service available.
7. OEM and ODM are accepted as well.
8. undertake orders of non-standard sizes at customer's requests.
| model | (mm)dimensions |
| W | r | a | L | S | D |
| MGGN150 | 1.5 | 0.15 | | 16 | 3.5 | 1.2 |
| MGGN200 | 2.0 | 0.2 | 16 | 3.5 | 1.6 |
| MGGN250 | 2.5 | 0.2 | 18.5 | 3.85 | 2 |
| MGGN300 | 3.0 | 0.3 | 21 | 4.8 | 2.35 |
| MGGN400 | 4.0 | 0.4 | 21 | 4.8 | 3.3 |
| MGGN500 | 5.0 | 0.8 | 26 | 5.8 | 4.12 |
| MGGN150-08R | 1.5 | 0.15 | 8 | 16 | 3.5 | 1.2 |
| MGGN200-08R | 2.0 | 0.2 | 16 | 3.5 | 1.6 |
| MGGN300-08R | 3.0 | 0.3 | 21 | 4.8 | 2.35 |
| MGGN400-08R | 4.0 | 0.4 | 21 | 4.8 | 3.3 |
| MGGN500-08R | 5.0 | 0.8 | 26 | 5.8 | 4.12 |
| model | Insert | (mm)dimensions |
| Tmax | h/w/H | L | screw | torx |

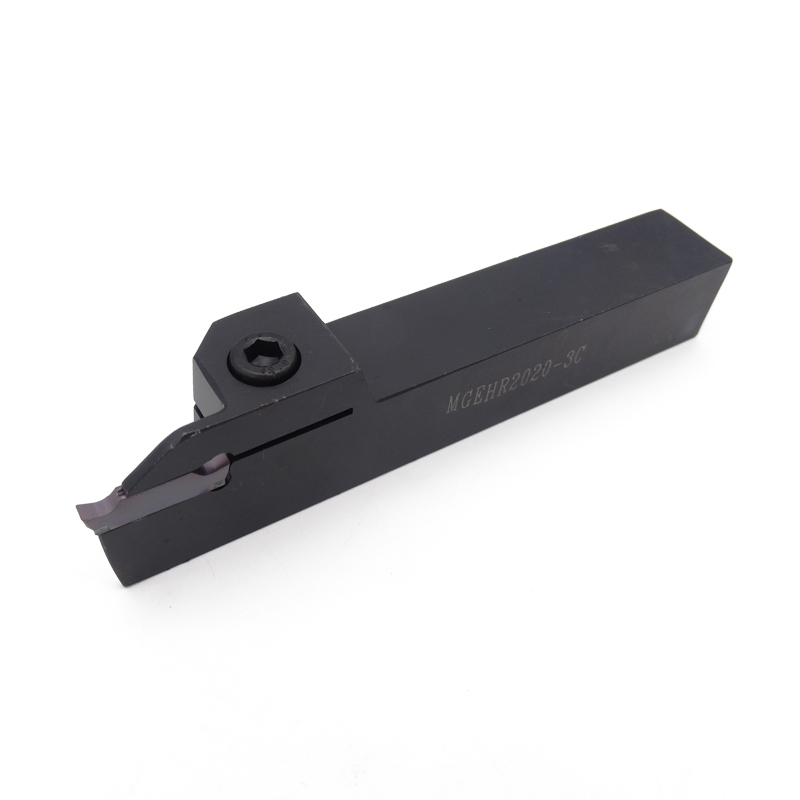

MGEHR
/L | 1616-1.5 | MGGN150 | 14 | 16 | 100 | LT*0512 | L2.0 |
| 2020-1.5 | 20 | 125 |
| 1212-2 | MGGN200 MGMN200 | 12 | 100 | BHA0616 | L5.0 |
| 1616-2 | 16 | 100 |
| 2020-2 | 20 | 125 |
| 2020-2.5 | MGGN2.5 | 16 | 20 | 125 | |
| 2525-2.5 | 25 | 150 |
| 1616-3 | MGGN300 MGMN300 | 18 | 16 | 100 | BHA0616 | L5.0 |
| 2020-3 | 20 | 125 |
| 2525-3 | 25 | 150 |
| 3232-3 | 32 | 170 |
| 2020-4 | MGGN400 MGMN400 | 20 | 125 |
| 2525-4 | 25 | 150 |
| 3232-4 | 32 | 170 |
| 2020-5 | MGGN500 MGMN500 | 23 | 20 | 125 |
| 2525-5 | 25 | 150 |
| 3232-5 | 32 | 170 |
| model | Insert | (mm)dimensions |
| Tmax | Dmax | L | screw | torx |
MGIVR
/L | 2016-1.5 | MGGN150 | 4 | 20 | 100 | MHB0310 | L2.5 |
| 2520-1.5 | 25 | 150 |
| 2016-2 | MGGN200 MGMN200 | 5 | 20 | 125 | MHA0512 | L2.5 |
| 2520-2 | 25 | 150 |
| 2925-2 | 29 | 200 |
| 2520-2.5 | MGGN2.5 | 5 | 25 | 150 | MHB0310 | L2.5 |
| 2925-2.5 | 29 | 200 |
| 2520-3 | MGGN300 MGMN300 | 6 | 25 | 150 | MHA0512 | L4.0 |
| 3125-3 | 31 | 200 |
| 3732-3 | 37 | 250 |
| 2520-4 | MGGN400 MGMN400 | 6 | 25 | 150 | MHA0512 | L4.0 |
| 3125-4 | 31 | 200 |
| 3732-4 | 37 | 250 |
| 3125-5 | MGGN500 MGMN500 | 8 | 31 | 200 |
| 3732-5 | 37 | 250 |
FAQ:
Q: Why customers choose us?
A: Competitive price,high quality,fast delivery,patiently pre-sales
consultation and perfect after-sales service. And we are
manufactures ,have our own factory ,we can Guarantee our quality.
Q: What's the MOQ?
A: Usually MOQ is one box,10 pcs/box, some special is 5 pcs/box or
2 pcs/box.
Q: How long is your delivery time?
A: Generally 3-7 work days if the quantity 1-500 pcs,more than 500
pcs,need to negotiate.
Q: How does your factory to control quality?
A: Quality is priority. we will do 100% quality inspection before
shipment.
Q: What is payment method?
A: Normally T/T, Western union,Pay pal ,Credit card.
Q: Do you accept trial order?
A: Yes, u can order with small amount to test.
