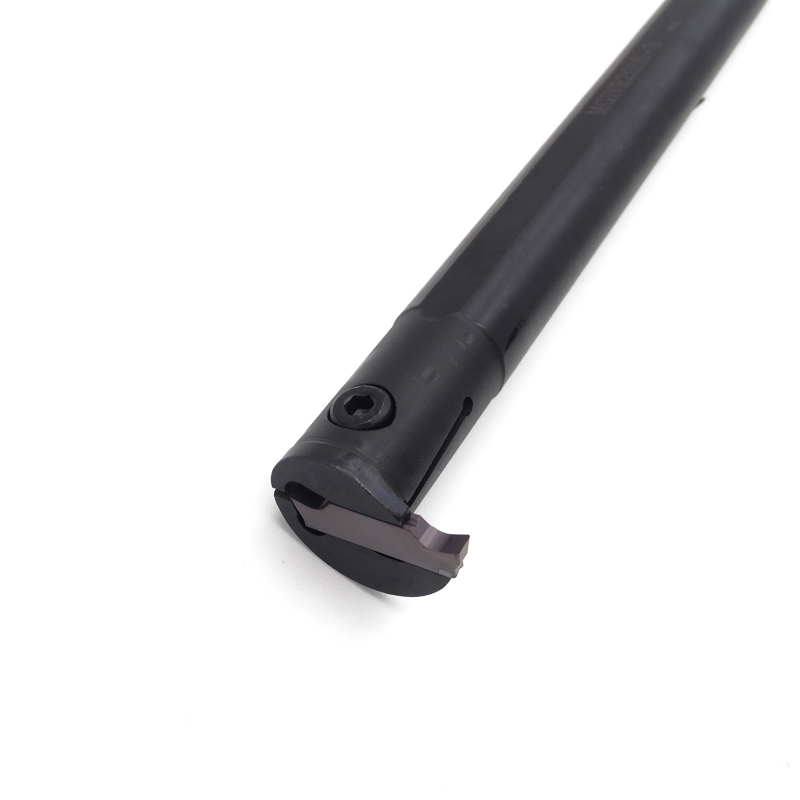

MGMN400-G Indexable Carbide Insert Parting Tool For CNC Machine Cut
Off
Description:
1) Full range of types available, more convenient for you to
purchase;
2) Various series available, therefore can provide full cutting solutions;
3) Produced with precision molds, the products have better
dimensional accuracy and uniform;
4) Careful surface treatment, ensuring perfect appearance,
increasing customer satisfaction;
5) Made of top-quality raw material, have more stable properties,
therefore easier to cut, also extend its service time.
Advantages:
Absolutely top - quality raw materials
* Precision Machining Technology
* Sharp cutting
* Save you more than 80%
* Cut Longer ,Change Less
* Packing style diversification and safety
* Accept customize packaging.
| model | (mm)dimensions |
| W | r | a | L | S | D |
| MGGN150 | 1.5 | 0.15 | | 16 | 3.5 | 1.2 |
| MGGN200 | 2.0 | 0.2 | 16 | 3.5 | 1.6 |
| MGGN250 | 2.5 | 0.2 | 18.5 | 3.85 | 2 |
| MGGN300 | 3.0 | 0.3 | 21 | 4.8 | 2.35 |
| MGGN400 | 4.0 | 0.4 | 21 | 4.8 | 3.3 |
| MGGN500 | 5.0 | 0.8 | 26 | 5.8 | 4.12 |
| MGGN150-08R | 1.5 | 0.15 | 8 | 16 | 3.5 | 1.2 |
| MGGN200-08R | 2.0 | 0.2 | 16 | 3.5 | 1.6 |
| MGGN300-08R | 3.0 | 0.3 | 21 | 4.8 | 2.35 |
| MGGN400-08R | 4.0 | 0.4 | 21 | 4.8 | 3.3 |
| MGGN500-08R | 5.0 | 0.8 | 26 | 5.8 | 4.12 |
| model | Insert | (mm)dimensions |
| Tmax | h/w/H | L | screw | torx |
MGEHR
/L | 1616-1.5 | MGGN150 | 14 | 16 | 100 | LT*0512 | L2.0 |
| 2020-1.5 | 20 | 125 |
| 1212-2 | MGGN200 MGMN200 | 12 | 100 | BHA0616 | L5.0 |
| 1616-2 | 16 | 100 |
| 2020-2 | 20 | 125 |
| 2020-2.5 | MGGN2.5 | 16 | 20 | 125 | |
| 2525-2.5 | 25 | 150 |
| 1616-3 | MGGN300 MGMN300 | 18 | 16 | 100 | BHA0616 | L5.0 |
| 2020-3 | 20 | 125 |
| 2525-3 | 25 | 150 |
| 3232-3 | 32 | 170 |
| 2020-4 | MGGN400 MGMN400 | 20 | 125 |
| 2525-4 | 25 | 150 |
| 3232-4 | 32 | 170 |
| 2020-5 | MGGN500 MGMN500 | 23 | 20 | 125 |
| 2525-5 | 25 | 150 |
| 3232-5 | 32 | 170 |
| model | Insert | (mm)dimensions |
| Tmax | Dmax | L | screw | torx |
MGIVR
/L | 2016-1.5 | MGGN150 | 4 | 20 | 100 | MHB0310 | L2.5 |
| 2520-1.5 | 25 | 150 |
| 2016-2 | MGGN200 MGMN200 | 5 | 20 | 125 | MHA0512 | L2.5 |
| 2520-2 | 25 | 150 |
| 2925-2 | 29 | 200 |
| 2520-2.5 | MGGN2.5 | 5 | 25 | 150 | MHB0310 | L2.5 |
| 2925-2.5 | 29 | 200 |
| 2520-3 | MGGN300 MGMN300 | 6 | 25 | 150 | MHA0512 | L4.0 |
| 3125-3 | 31 | 200 |
| 3732-3 | 37 | 250 |
| 2520-4 | MGGN400 MGMN400 | 6 | 25 | 150 | MHA0512 | L4.0 |
| 3125-4 | 31 | 200 |
| 3732-4 | 37 | 250 |
| 3125-5 | MGGN500 MGMN500 | 8 | 31 | 200 |
| 3732-5 | 37 | 250 |
FAQ:
Q: Why customers choose us?
A: Competitive price,high quality,fast delivery,patiently pre-sales
consultation and perfect after-sales service. And we are
manufactures ,have our own factory ,we can Guarantee our quality.
Q: What's the MOQ?
A: Usually MOQ is one box,10 pcs/box, some special is 5 pcs/box or
2 pcs/box.
Q: How long is your delivery time?
A: Generally 3-7 work days if the quantity 1-500 pcs,more than 500
pcs,need to negotiate.
Q: How does your factory to control quality?
A: Quality is priority. we will do 100% quality inspection before
shipment.
Q: What is payment method?
A: Normally T/T, Western union,Pay pal ,Credit card.
Q: Do you accept trial order?
A: Yes, u can order with small amount to test.
