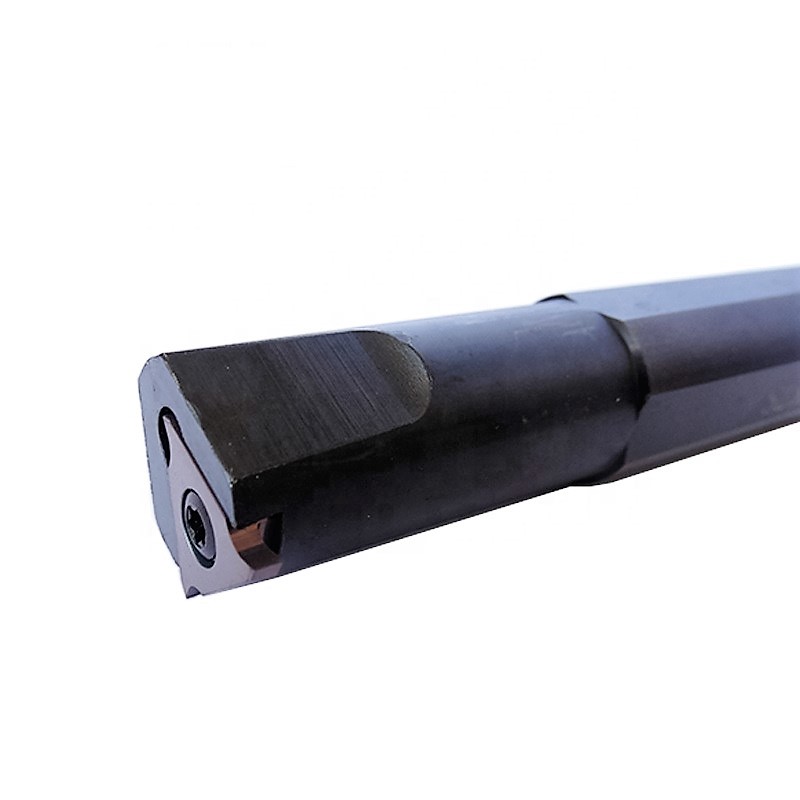

GBA Grooving Tool Holder For CNC Parting Carbide Cutting Inserts
Description:
Tungsten carbide insert has new Cutting edge technology with better
quality and longer tool life.
1) Excellent surface finish on the workpiece.
2) Improved adhesion and insert chipping resistance
3) Stable and extended tool life in continuous and interrupted
cutting operations
4) Advanced production machine ensure stable excellent quality
5) Cutting edge well honed
6) Parallel surface grinding ensure a insert’s presicion
| GBA43- | shallow | | of | grooving | insert | | | | | |
| model | dimensions |
| r | W-m | B | T | IC | d |
GBA43R/L
(R,L) | 075 | 0.1 | 0.7 | 2.5 | 4.76 | 12.7 | 5.4 |
| 100 | 0.1 | 1.0 | 2.5 |
| 120 | 0.1 | 1.2 | 2.5 |
| 130 | 0.1 | 1.3 | 2.7 |
| 140 | 0.1 | 1.4 | 2.7 |
| 150 | 0.2 | 1.5 | 3.0 |
| 160 | 0.2 | 1.6 | 3.0 |
| 180 | 0.2 | 1.8 | 3.3 |
| 200 | 0.2 | 2.0 | 3.5 |
| 220 | 0.2 | 2.2 | 3.5 |
| 240 | 0.2 | 2.4 | 3.5 |
| 250 | 0.3 | 2.5 | 4.2 |
| 260 | 0.3 | 2.6 | 4.2 |
| 280 | 0.3 | 2.8 | 4.6 |
| 300 | 0.3 | 3.0 | 4.6 |
| 320 | 0.3 | 3.2 | 4.6 |
| 350 | 0.3 | 3.5 | 4.8 |
| 380 | 0.3 | 3.8 | 4.8 |
| 400 | 0.4 | 4.0 | 4.8 |
| 450 | 0.4 | 4.5 | 5.0 |
| 500 | 0.4 | 5.0 | 5.0 | 5.2 | 12.7 | 5.4 |
| 型号model | 尺寸参数dimensions |
| r | W-m | B | T | IC | d |
GBA43R/L
(右刀R,左刀L) | 100-R0.5 | 0.5 | 1.0 | 2.5 | 4.76 | 12.7 | 5.4 |
| 120-R0.6 | 0.6 | 1.2 | 3.0 |
| 150-R0.75 | 0.75 | 1.5 | 3.0 |
| 200-R1.0 | 1.0 | 2.0 | 3.5 |
| 250-R1.25 | 1.25 | 2.5 | 4.6 |
| 300-R1.5 | 1.5 | 3.0 | 4.6 |
| 400-R2.0 | 2.0 | 4.0 | 5.0 |
| 型号model | 刀片
insert | 尺寸
dimensions | 刀片螺丝
screw | 扳手
troy | 压板
clamp | 双头螺栓claml
screw | 扳手
wrench |
| h/b | L |
| TKGFR/L | 1010K16 | TGF32R
/L | 10 | 125 | M4*10 | T15 | 无 without |
| 1212K16 | 12 | 125 |
| 1616M16 | 16 | 150 |
| 2020M16 | 20 | 150 |
| 2525M16 | 25 | 150 |
| GBA43R/L | 2020K22 | GBA43R
/L | 20 | 125 | M5*11/12 | T20 | HL1814 | ML0625 | S2.5 |
| 2525M22 | 25 | 150 |
| 3232P22 | 32 | 170 |
FAQ:
Q: Why customers choose us?
A: Competitive price,high quality,fast delivery,patiently pre-sales
consultation and perfect after-sales service. And we are
manufactures ,have our own factory ,we can Guarantee our quality.
Q: How long is your delivery time?
A: Generally 3-7 work days if the quantity 1-500 pcs,more than 500
pcs,need to negotiate.
Q: How does your factory to control quality?
A: Quality is priority. we will do 100% quality inspection before
shipment.
Q: What is payment method?
A: Normally T/T, Western union,Pay pal ,Credit card.
Q: Do you accept trial order?
A: Yes, u can order with small amount to test.
